morph::ui::CustomWidget Class Reference

A component a renderer loaded in a custom node's place (spec 5 §10): a bundle's verified QML or a host component, given the props the document binds and handing back the events it raises. More...

#include <backend.hpp>

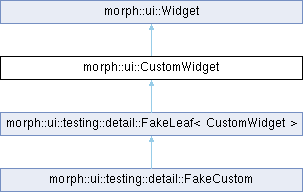

Inheritance diagram for morph::ui::CustomWidget:

Public Member Functions
virtual void	setTextProp (std::string_view name, std::string_view value)=0
	Sets a text prop: string, and int, exact and json, which cross as text so that no value loses precision.
virtual void	setBoolProp (std::string_view name, bool value)=0
	Sets a bool prop.
virtual void	setNumberProp (std::string_view name, double value)=0
	Sets a number prop: the one kind of value that crosses as a double.
virtual void	setOnEvent (std::function< void(std::string event, std::string payload)> onEvent)=0
	Hands over the handler of the component's events.
Public Member Functions inherited from morph::ui::Widget
	Widget (Widget const &)=delete
Widget &	operator= (Widget const &)=delete
	Widget (Widget &&)=delete
Widget &	operator= (Widget &&)=delete
virtual void	setVisible (bool visible)=0
	Shows or hides the widget and everything inside it.
virtual void	setEnabled (bool enabled)=0
	Enables or disables input on the widget and everything inside it.
virtual void	setLayout (LayoutHints const &hints)=0
	Sets the size request.
virtual void	setDragKey (std::optional< Key > const &key)=0
	Makes the widget draggable, carrying key, or not draggable.
virtual void	setDropHandler (std::function< bool(Key const &)> accepts, std::function< void(Key)> onDrop)=0
	Makes the widget a drop target.
virtual void	setAccessibleName (std::string_view name)=0
	Sets the name assistive technology reads for the widget.
virtual void	setAccessibleRole (std::string_view role)=0
	Sets the role assistive technology announces for the widget.
virtual void	setTestId (std::string_view testId)=0
	Sets the stable identifier an automated test finds the widget by.
virtual void	setTooltip (std::string_view text)=0
	Sets the text shown while the pointer rests on the widget.
virtual void	setSurface (std::string_view surface)=0
	Styles the widget and everything inside it with a named token set of the theme.
virtual void	setKeys (std::vector< std::string > const &chords, std::function< void(std::string)> onChord)=0
	Declares the keyboard chords the widget handles while focus is inside it.
virtual void	focus ()=0
	Moves keyboard focus to the widget.
virtual void	setOnHover (std::function< void()> onHover)
	Calls onHover each time the pointer comes to rest over the widget. A backend without a pointer, or one that does not report hovering, keeps the default, which never calls it: hovering is a hint, such as a prefetch, never something a widget relies on.

Detailed Description

A component a renderer loaded in a custom node's place (spec 5 §10): a bundle's verified QML or a host component, given the props the document binds and handing back the events it raises.

Definition at line 773 of file backend.hpp.

Member Function Documentation

setTextProp()

virtual void morph::ui::CustomWidget::setTextProp ( std::string_view name, std::string_view value )

pure virtual

Sets a text prop: string, and int, exact and json, which cross as text so that no value loses precision.

Parameters

name	The prop.
value	Its text.

Implemented in morph::ui::testing::detail::FakeCustom.

setBoolProp()

virtual void morph::ui::CustomWidget::setBoolProp ( std::string_view name, bool value )

pure virtual

Sets a bool prop.

Parameters

name	The prop.
value	Its value.

Implemented in morph::ui::testing::detail::FakeCustom.

setNumberProp()

virtual void morph::ui::CustomWidget::setNumberProp ( std::string_view name, double value )

pure virtual

Sets a number prop: the one kind of value that crosses as a double.

Parameters

name	The prop.
value	Its value.

Implemented in morph::ui::testing::detail::FakeCustom.

setOnEvent()

virtual void morph::ui::CustomWidget::setOnEvent ( std::function< void(std::string event, std::string payload)> onEvent )

pure virtual

Hands over the handler of the component's events.

Parameters

onEvent

Called with the event's name and its payload as text (a key as i:<int64> or s:<text>, anything else as the component wrote it); empty does nothing.

Implemented in morph::ui::testing::detail::FakeCustom.

---

The documentation for this class was generated from the following file:

• morph/ui/backend.hpp
