morph::ui::PanelWidget Class Reference

A titled frame around its children, optionally collapsible. More...

#include <backend.hpp>

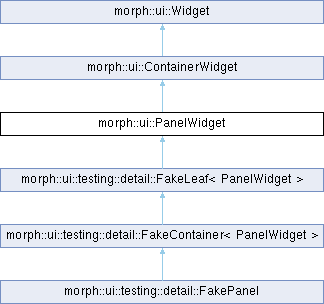

Inheritance diagram for morph::ui::PanelWidget:

Public Member Functions
virtual void	setTitle (std::string_view title)=0
	Replaces the title.
virtual void	setPadding (int padding)=0
	Sets the space between frame and content.
virtual void	setCollapsible (bool collapsible)=0
	Sets whether the user can collapse the panel.
virtual void	setHeader (Widget &header)=0
	Shows one of its children beside the title; called at most once. The header stays visible and usable while the panel is collapsed.
virtual void	setCollapsed (bool collapsed)=0
	Collapses or expands the panel. A collapsed panel hides its content, which takes no input; its own collapse control still works. The header is not part of "its content" for this purpose: it stays shown and usable while collapsed. Never calls the onToggle handler.
virtual void	setOnToggle (std::function< void(bool)> onToggle)=0
	Sets what a user collapse or expand calls, with the requested state.
Public Member Functions inherited from morph::ui::ContainerWidget
virtual void	moveChild (Widget &child, std::size_t index)=0
	Moves child to position index: it is removed, then inserted before the child now at index.
Public Member Functions inherited from morph::ui::Widget
	Widget (Widget const &)=delete
Widget &	operator= (Widget const &)=delete
	Widget (Widget &&)=delete
Widget &	operator= (Widget &&)=delete
virtual void	setVisible (bool visible)=0
	Shows or hides the widget and everything inside it.
virtual void	setEnabled (bool enabled)=0
	Enables or disables input on the widget and everything inside it.
virtual void	setLayout (LayoutHints const &hints)=0
	Sets the size request.
virtual void	setDragKey (std::optional< Key > const &key)=0
	Makes the widget draggable, carrying key, or not draggable.
virtual void	setDropHandler (std::function< bool(Key const &)> accepts, std::function< void(Key)> onDrop)=0
	Makes the widget a drop target.
virtual void	setAccessibleName (std::string_view name)=0
	Sets the name assistive technology reads for the widget.
virtual void	setAccessibleRole (std::string_view role)=0
	Sets the role assistive technology announces for the widget.
virtual void	setTestId (std::string_view testId)=0
	Sets the stable identifier an automated test finds the widget by.
virtual void	setTooltip (std::string_view text)=0
	Sets the text shown while the pointer rests on the widget.
virtual void	setSurface (std::string_view surface)=0
	Styles the widget and everything inside it with a named token set of the theme.
virtual void	setKeys (std::vector< std::string > const &chords, std::function< void(std::string)> onChord)=0
	Declares the keyboard chords the widget handles while focus is inside it.
virtual void	focus ()=0
	Moves keyboard focus to the widget.
virtual void	setOnHover (std::function< void()> onHover)
	Calls onHover each time the pointer comes to rest over the widget. A backend without a pointer, or one that does not report hovering, keeps the default, which never calls it: hovering is a hint, such as a prefetch, never something a widget relies on.

Detailed Description

A titled frame around its children, optionally collapsible.

Definition at line 351 of file backend.hpp.

Member Function Documentation

setTitle()

virtual void morph::ui::PanelWidget::setTitle ( std::string_view title )

pure virtual

Replaces the title.

Parameters

title

The title, UTF-8.

Implemented in morph::ui::testing::detail::FakePanel.

setPadding()

virtual void morph::ui::PanelWidget::setPadding ( int padding )

pure virtual

Sets the space between frame and content.

Parameters

padding

A spacing step, 0 to kMaxSpacingStep; the mount never passes another value.

Implemented in morph::ui::testing::detail::FakePanel.

setCollapsible()

virtual void morph::ui::PanelWidget::setCollapsible ( bool collapsible )

pure virtual

Sets whether the user can collapse the panel.

Parameters

collapsible

Whether a collapse control is shown.

Implemented in morph::ui::testing::detail::FakePanel.

setHeader()

virtual void morph::ui::PanelWidget::setHeader ( Widget & header )

pure virtual

Shows one of its children beside the title; called at most once. The header stays visible and usable while the panel is collapsed.

Parameters

header

A child of this widget.

Implemented in morph::ui::testing::detail::FakePanel.

setCollapsed()

virtual void morph::ui::PanelWidget::setCollapsed ( bool collapsed )

pure virtual

Collapses or expands the panel. A collapsed panel hides its content, which takes no input; its own collapse control still works. The header is not part of "its content" for this purpose: it stays shown and usable while collapsed. Never calls the onToggle handler.

Parameters

collapsed

Whether the content is hidden.

Implemented in morph::ui::testing::detail::FakePanel.

setOnToggle()

virtual void morph::ui::PanelWidget::setOnToggle ( std::function< void(bool)> onToggle )

pure virtual

Sets what a user collapse or expand calls, with the requested state.

Parameters

onToggle

The handler; empty does nothing.

Implemented in morph::ui::testing::detail::FakePanel.

---

The documentation for this class was generated from the following file:

• morph/ui/backend.hpp
